Agriculture
Help farmers select best crops
The problem: maximize yield of crops
Farmers primary goal is to maximize crop yield in each season. To achieve that farmers need to make a crucial decision to select the best crop depending on soil conditions such as the levels of nitrogen, phosphorous, potassium, and the pH value of the soil to ensure optimal growth and yield.
The data
For this project, the goal is to develop a multi-class classification model using Butterfly AI Platform to predict the most suitable crop based on the provided features.

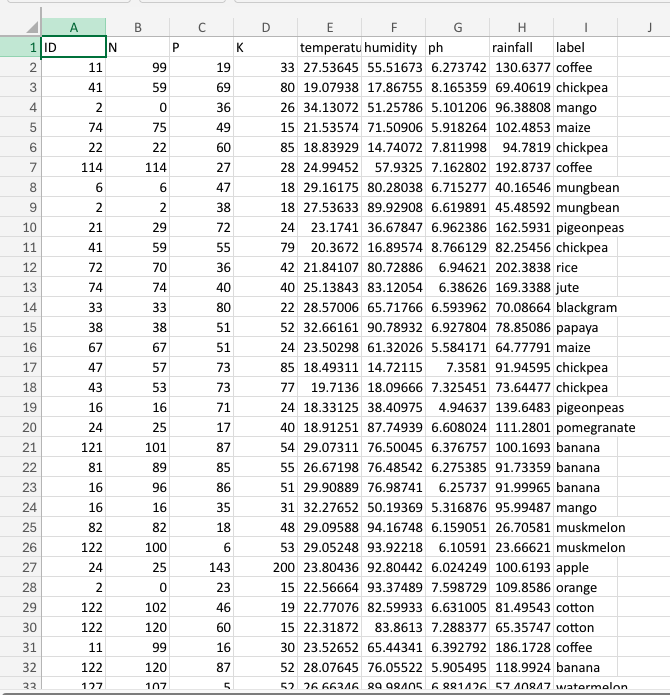

The present dataset (Crop.csv) includes the following features:
| Parameter | Units | Description |
|---|---|---|
N |
% (ratio) | Nitrogen content ratio in the soil. |
P |
% (ratio) | Phosphorous content ratio in the soil. |
K |
% (ratio) | Potassium content ratio in the soil. |
ph |
0–14 (unitless) | pH value (acidity/alkalinity) of the soil. |
temperature |
°C | Ambient/soil temperature measured in degrees Celsius. |
humidity |
% | Relative humidity. |
rainfall |
mm | Total rainfall (e.g., over the sampling period). |
label |
categorical | Target variable: crop label for the given soil conditions. |

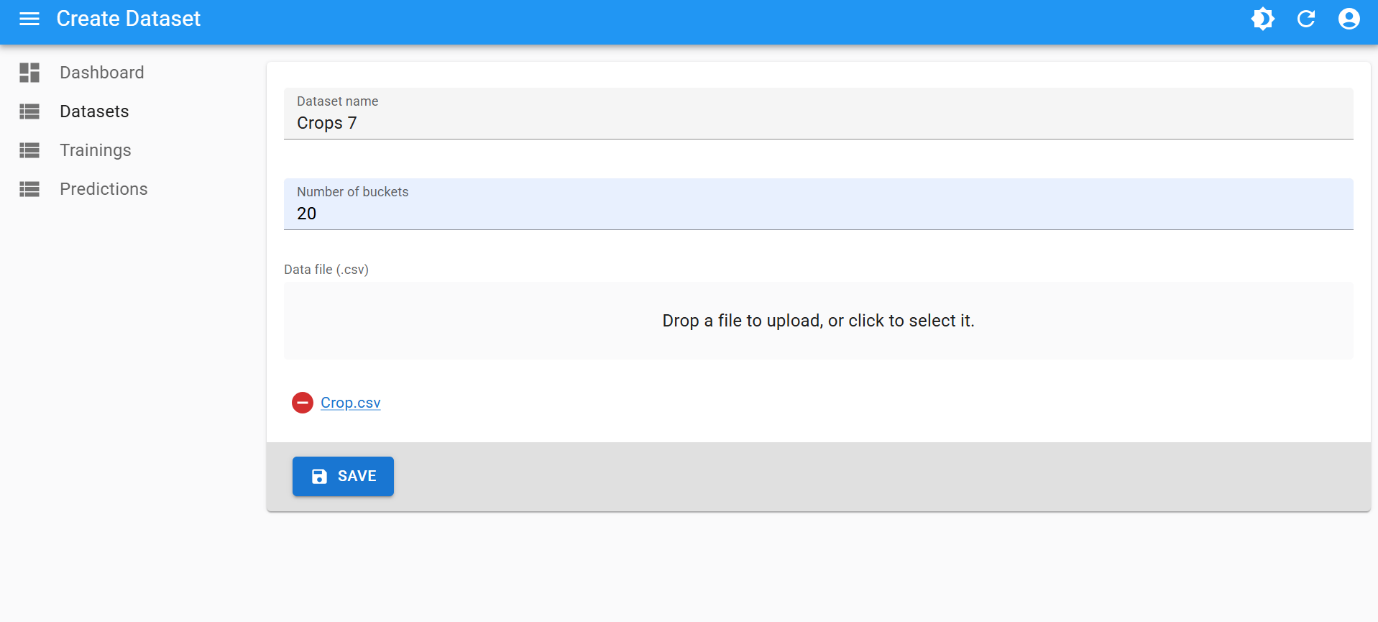

Dataset creation
Use the following parameters for dataset creation:
- number of buckets:
20

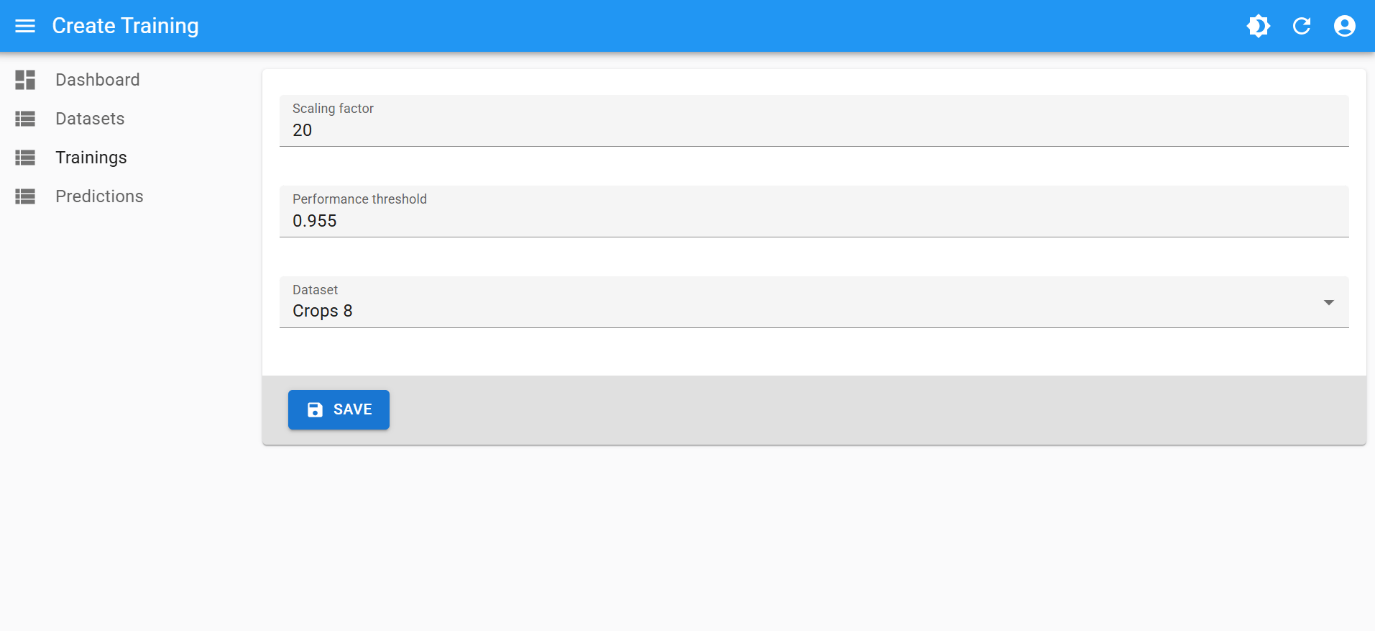

Training

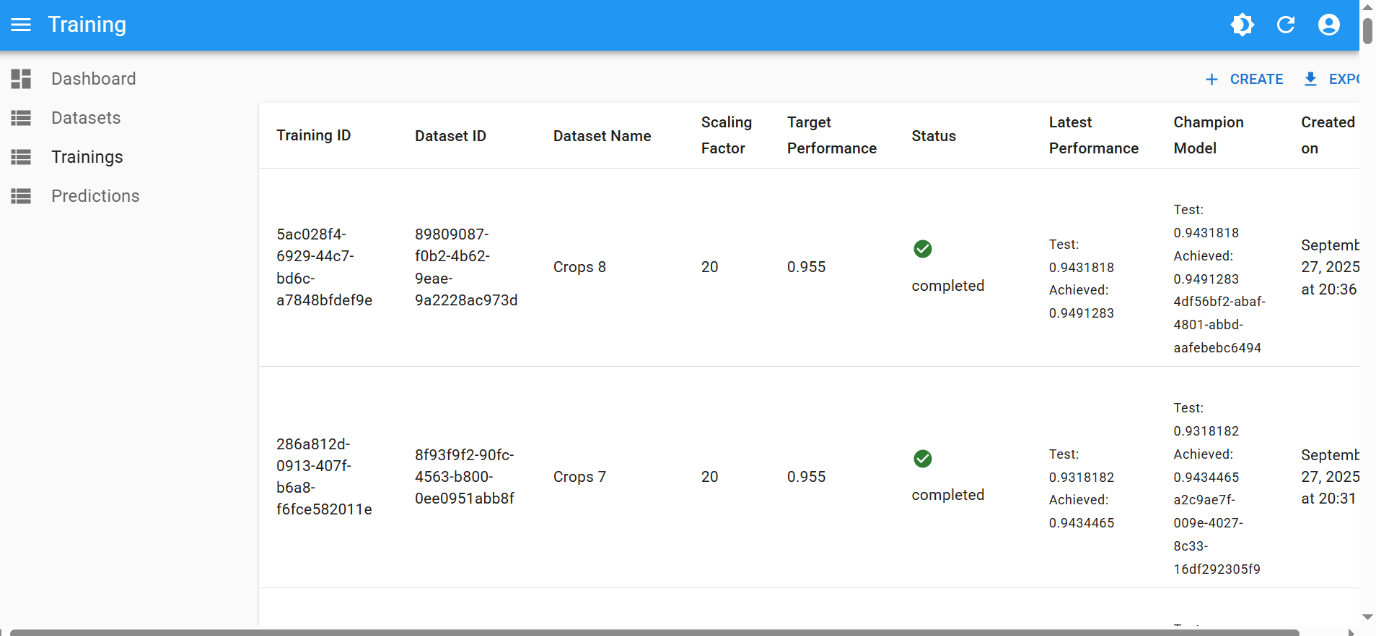

This is the best training attempt:
- scaling factor:
20 - performance threshold:
0.955
which obtained maximum performance (0.9491283 vs previous 0.9434465)
This good performance of 0.955 was achieved after few iterations of hyperparameter tuning:
| # | Number of Buckets | Scaling Factor | Performance Threshold |
|---|---|---|---|
| 1 | 20 | 19 | 0.80 |
| 2 | 20 | 20 | 0.95 |
| 3 | 10 | 20 | 0.96 |
| 4 | 10 | 20 | 0.955 |
Final result

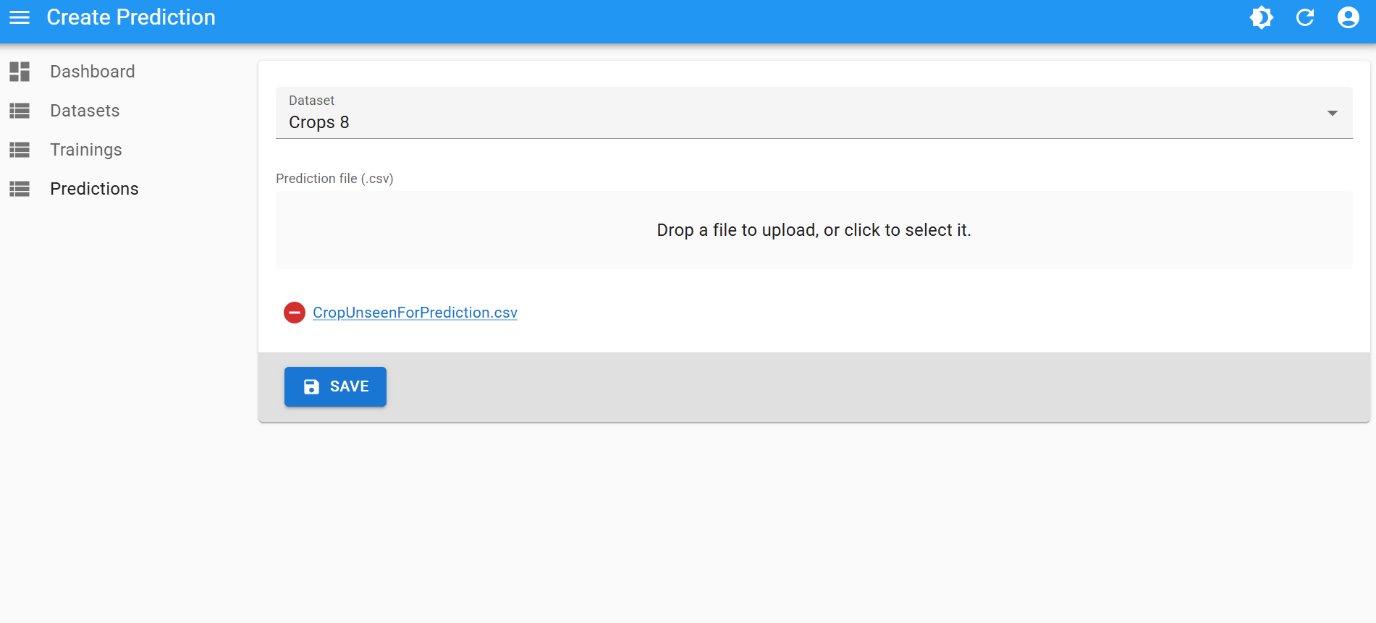

Using this unseen unlabelled data
As this is a multi-class classification, a probability is assigned to each target label. In this case, Probability1 belongs to the first label, Probability2 belongs to the second label… the label order is established following their appearance order in the original training file.
For example, in the Crops training file used for this example, the Probability18=lentil as lentil is the 18th distinct label that appears in the file. The classification result is the label with the highest probability of all.

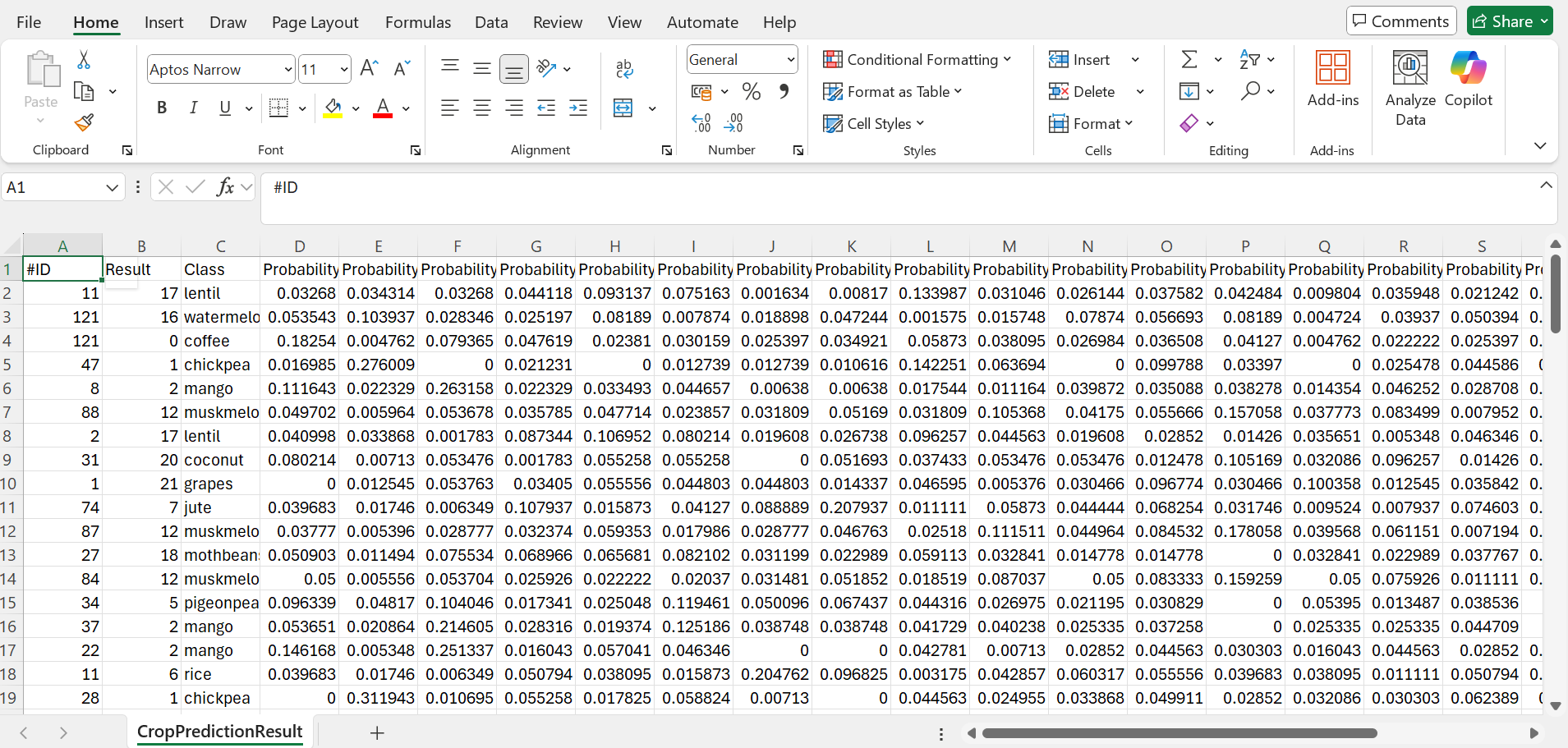

The resulting labelled CSV looks like this:
